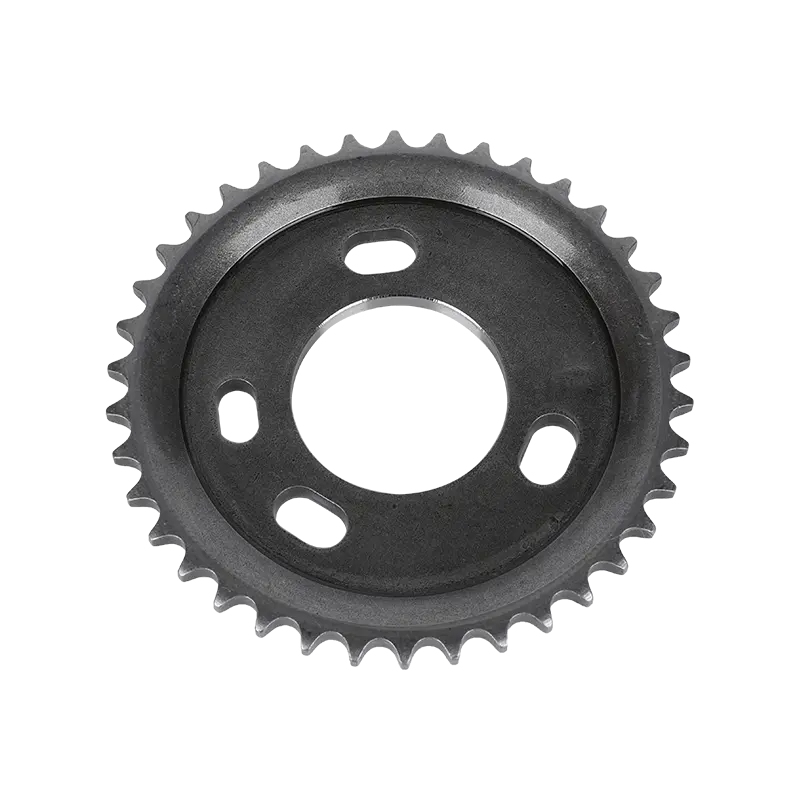

How to ensure the manufacturing accuracy and quality control of customized engine timing gears?

1. Material selection
The selection of materials has a crucial impact on the quality of Engine Timing Sprocket. Excellent gear materials should have the characteristics of high strength, high wear resistance, high fatigue strength and good toughness. For engine timing gears, commonly used materials include low carbon steel, medium carbon steel, alloy steel and cast iron. When selecting materials, it is also necessary to consider the use conditions of the gears, such as speed, load, working environment temperature, etc., to ensure that the gears can operate stably for a long time.

For specific working environments, it may be necessary to select materials with special properties, such as high temperature resistance, corrosion resistance or materials with a specific hardness gradient. At the same time, the selection of materials also needs to consider cost-effectiveness to reduce production costs while meeting performance requirements.

2. Production process optimization
Development design and manufacturing methods:
During the design stage, the geometry, dimensional tolerances, material properties, etc. of the Engine Timing Sprocket need to be accurately calculated to ensure the meshing performance and transmission efficiency of the gears.
The choice of manufacturing method needs to be determined according to the complexity and precision requirements of the gears. For example, for high-precision gears, methods such as precision casting, precision forging or precision machining may be required.
Processing technology:
The processing process of Engine Timing Sprocket includes three stages: roughing, semi-finishing and finishing. At each stage, the processing error must be strictly controlled to ensure the accuracy and surface quality of the gear.
In the finishing stage, such as shaving, cold extrusion and honing, special attention should be paid to the problem of tooth profile distortion. By optimizing process parameters, such as reducing the circumferential speed of the workpiece and adopting a double pressure angle convex tooth profile, the tooth profile distortion can be effectively reduced, the transmission accuracy of the gear can be improved, and the noise can be reduced.
Heat treatment:
Heat treatment is an important means to improve the material properties of gears and increase hardness and strength. During the heat treatment process, parameters such as temperature, holding time and heating rate must be strictly controlled to ensure that the hardness and strength of the gear meet the design requirements.
For specific materials, such as carburizing steel, special treatments such as carburizing and quenching are also required to improve the wear resistance and fatigue resistance of the gear.
III. Error control
Gear hobbing error control:
Gear hobbing is one of the important processes in gear processing. During the gear hobbing process, the two center holes and the end face are used as positioning references to strictly control the gear hobbing error.
By optimizing the tool design, improving the tool accuracy and stability, and adjusting the transmission ratio of the transmission chain, the gear hobbing error can be effectively reduced and the gear processing accuracy can be improved.
Tooth profile error and base pitch deviation control:
Tooth profile error and base pitch deviation are important factors affecting the working stability of the gear. During the processing, it is necessary to accurately measure and adjust the process parameters, such as the length of the common normal line and the radial runout of the gear ring, to control the tooth profile error and base pitch deviation.
Tooth direction error control:
Tooth direction error is an important factor affecting the contact accuracy of the Engine Timing Sprocket. During the processing, it is necessary to optimize the processing method and adjust the process parameters, such as using centerless finishing, to reduce the tooth direction error and improve the contact accuracy of the gear.
IV. Detection and feedback mechanism
Detection method:
The detection methods of the Engine Timing Sprocket include size detection, shape detection and quality detection. For high-precision gears, a high-precision three-coordinate measuring instrument is also required for measurement.
By continuously improving and optimizing the detection methods and equipment, the quality of gear products can be effectively improved.
Feedback mechanism:
Establishing a reasonable feedback mechanism is crucial for optimizing and improving the manufacturing process. The results of the quality mining and analysis of the manufacturing process should be fed back to the quality inspection control system to control the key processes.
Research the knowledge discovery method based on the quality data of the gear manufacturing process, judge the quality of the process manufacturing, optimize the quality inspection strategy parameters according to the quality information, and feedback the quality information to the technical department and production workshop to achieve comprehensive control of the quality in the manufacturing process.
V. Case analysis and experience summary
By analyzing the cases in actual production, such as the fracture failure of the Engine Timing Sprocket, some lessons can be summarized. For example, in terms of raw material selection, the chemical composition and microstructure of the material need to be strictly controlled; in terms of heat treatment process, the process parameters such as normalizing, carburizing and quenching need to be optimized; in terms of turning, the cutting amount, cutting speed and cooling conditions need to be strictly controlled.
